scDrugAtlas: an integrative single-cell drug response database for dissecting tumour heterogeneity in therapeutic efficacy

Abstract

Tumour heterogeneity often leads to substantial differences in responses to same drug treatment. The presence of pre-existing or acquired drug-resistant cell subpopulations within a tumour survive and proliferate, ultimately resulting in tumour relapse and metastasis. The drug resistance is the leading cause of failure in clinical tumour therapy. Therefore, accurate identification of drug-resistant tumour cell subpopulations could greatly facilitate the precision medicine and novel drug development. However, the scarcity of single-cell drug response data significantly hinders the exploration of tumour cell resistance mechanisms and the development of computational predictive methods. In this paper, we propose scDrugAtlas, a comprehensive database devoted to integrating the drug response data at single-cell level. We manually compiled more than 100 datasets containing single-cell drug responses from various public resources. The current version comprises large-scale single-cell transcriptional profiles and drug response labels from 1023 samples, across 77 unique drugs and 31 major cancer types. Particularly, we assigned a confidence level to each response label based on the tissue source (primary or relapse/metastasis), drug exposure time, and drug-induced cell phenotype. We believe scDrugAtlas could greatly facilitate the Bioinformatics community for developing computational models and biologists for identifying drug-resistant tumour cells and underlying molecular mechanism.

Database URL: http://drug.hliulab.tech/scDrugAtlas/.

Introduction

The existence of intrinsic and acquired drug-resistant cells is the main cause of failure in tumour therapy. Despite the fact that routine drug treatment can effectively eliminate the majority of malignant cells, a small subset of tumour cells would survive and continue to proliferate, ultimately leading to tumour recurrence and progression. Some scholars have developed bioinformatic methods to predict patients’ clinical response to drugs based on the bulk RNA-seq of cell lines already with large-scale drug sensitivity data, such as GDSC [1,2], CCLE [3,4], and CTRP [5]. However, these bulk-level drug sensitivity data can not identify the response or resistance of individual cells to specific drugs, thereby failing to adequately dissect the tumour heterogeneity in drug responses.

In recent years, the advent of single-cell RNA-sequencing (scRNA-seq) technology had generated a wealth of single-cell transcriptional data, providing valuable opportunity to explore the intratumoural heterogeneity in drug response [6]. However, no large-scale experimental data for single-cell drug sensitivity is available, resulting in a significant gap in our knowledge regarding drug response at the single-cell level and bulk level. This gap press a challenging but urgent task to predict the drug sensitivity of individual cells. Several studies have employed transfer learning techniques to align bulk RNA-seq and single-cell RNA-seq (scRNA-seq) data for predicting drug responses at the single-cell level [7–10]. For example, scDeal [11] integrates bulk RNA-seq and scRNA-seq data by aligning domains via maximum mean discrepancy to predict single-cell drug responses. Following this idea, SCAD [12] employs adversarial domain adaptation to predict single-cell drug sensitivity. Moreover, scAdaDrug [13] employs adaptive-weighted multisource domain adaptation to align scRNA-seq data with multiple bulk RNA-seq data domains, resulting in improved performance in predicting drug responses of individual cells. SSDA4Drug [14], on the other hand, utilizes semisupervised domain adaptation to enhance domain alignment by leveraging few-shot samples from the target scRNA-seq domain, thereby achieving superior accuracy in identifying individual drug-resistant cells. However, the scarcity of single-cell drug response data still significantly impede the exploration of tumour cell resistance mechanisms, and also restricts the development of high-performance computational methods for predicting drug-resistant individual cells.

So, we have worked hard to develop an integrative single-cell drug response database, referred to as scDrugAtlas. We manually compiled single-cell drug response datasets from various public resources, including GEO, PubMed publications, and external databases. To ensure the reliability of the drug response labels, we carefully examined that the cell tissue originated from primary, recurrent, or metastatic lesions, whether the cell line was exposed to the drug for a sufficient duration, and whether the cells acquired resistance and continued to proliferate. Based on these assessments, we assigned response labels to each cell regarding specific drug. After data preprocessing and filtering of low-quality data, our database now comprises the transcriptional profiles and drug response labels of 1 209 207 cells came from more than 1000 samples (cell line, mouse, PDX models, patients, and bacterium), across 77 unique drugs and 31 major cancer types. Furthermore, we have built quite a few integrated datasets for some cancer type of interest by removal of batch effects. To our best knowledge, scDrugAtlas is the largest comprehensive database devoted to single-cell drug response to date.

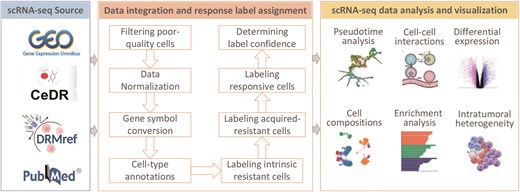

Data resources and integration

First, we retrieved the PubMed publications using the keywords ‘(single cell) OR (scRNA-seq)’ AND ‘drug’ AND ‘(response) OR (sensitivity) OR (resistance) OR (tolerance)’, and subsequently extracted associated data and determined the response labels of individual cells by manually reviewing the content of these publications. Also, we used the same keywords to retrieve datasets from GEO [15] and determined the single-cell response labels based on the corresponding publications. Finally, we also selected some datasets from external databases, including CeDR [16] and DRMref [17]. Figure 1 illustrated the data resources, preprocessing and integration procedures, as well as data analysis functionalities.

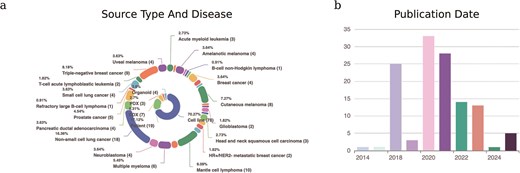

After data collection, we excluded cells with the number of expressed genes <500 and with the mitochondrial gene ratio >10% from each dataset. Subsequently, we utilized pyensembl package to convert gene identifiers to Ensemble IDs. As a result, scDrugAtlas now comprises the single-cell transcriptional profiles and drug response labels of 1 209 207 cells came from 1023 samples (cell line, mouse, PDX models, patients, and bacterium), across 77 distinct drugs and 31 major cancer types. Figure 2 provides a statistical overview of the datasets, detailing the proportion according to cell source types and diseases (Fig. 2a) and the frequency according to publication date (Fig. 2b). The drugs covered chemotherapy, targeted therapy, and immunotherapy. Detailed drug information was extracted from DrugBank (version 5.1.10) [18].

To facilitate the use of our data resource, we built more than ten integrated datasets for selected cancer type by combining scRNA-seq data from the same cancer type subjected to specific drug treatments. Specifically, datasets were merged, batch labels were assigned, and batch effects were corrected using the batch-balanced kNN algorithm implemented in Scanpy [19]. For example, one integrated dataset comprises 23 314 melanoma cells subjected to Vemurafenib treatment, including 11 955 responsive and 11 359 resistant cells. Another combined dataset consists of 9274 breast cancer cells treated with Paclitaxel, with 6235 responsive and 3039 resistant cells. These integrated datasets can be freely available for download from our database and are ready for use in training machine learning models to predict single-cell drug responses.

Label assignments and confidence levels

Determining drug-sensitive samples at the single-cell level often presents significant challenges, since single-cell sequencing inherently destroys the physical integrity of the cells. In principle, to determine whether an individual cell responds to a drug requires treating the cell with the drug and observing subsequent changes in its fate. However, once a cell undergoes apoptosis or is effectively killed by drug exposure, it becomes infeasible to conduct single-cell sequencing. As a result, drug-sensitive labels are often assign to the control-group cells based on response of treated groups to drug treatments. Specifically, when cells in the treatment group failed to survive or proliferate after drug exposure, we classified the corresponding control group cells as drug-sensitive.

While untreated control cells were operationally designated as drug-sensitive, those persisting under therapeutic pressure were classified as resistant. To move beyond this binary classification, we developed a systematic pipeline coupled with a confidence-rating scheme to capture both the robustness and stability of resistant phenotypes. This pipeline integrates multiple layers of evidence, including clinical endpoints such as tumour recurrence or metastasis, drug-exposure parameters encompassing treatment duration and biological context, and the proliferative capacity of cells under sustained therapeutic exposure. By jointly considering these criteria, resistant populations were stratified into three tiers of confidence: high, medium, and low. This pipeline facilitates consistent annotation of resistant cell populations and provides a robust foundation for downstream mechanistic studies and the development of predictive models for therapeutic response.

Drug-resistant phenotype (assigned as High-confidence/3-star) denotes a stable cellular state characterized by sustained survival and robust proliferative capacity. This state is most clearly evidenced by tumour recurrence or metastasis following therapy, as cells derived from these lesions have undergone stringent selective pressure within the complex human microenvironment. Intrinsic resistance likewise reflects stable biological traits that confer constitutive survival advantages. In addition, prolonged drug exposure over extended periods (>6 months) has been shown to drive tumour cells towards durable, heritable resistance through genetic mutations, transcriptional reprogramming, or epigenetic remodelling. Robust proliferation under sustained therapeutic pressure therefore represents the hallmark of a fully resistant state. On this basis, cells meeting one or more of the following criteria are classified as high-confidence, three-star resistant: (i) originating from recurrent or metastatic patient samples, PDX models, or mouse tumours; (ii) displaying well-established intrinsic resistance (e.g. NSCLC cells to TKIs such as erlotinib); or (iii) regaining proliferative capacity after more than 6 months of continuous drug exposure.

Drug-tolerant state (assigned as Medium-confidence/2-star) corresponds to intermediate drug exposure (1–6 months), which often induces adaptive responses by activating alternative survival pathways that counteract drug-induced apoptosis. Such cells typically occupy a dynamic ‘drug-tolerant’ state, reflecting an intermediate phase in the evolutionary trajectory towards stable resistance. Their limited proliferative potential indicates that resistance mechanisms have not yet fully consolidated. Accordingly, cell populations surviving 1–6 months of treatment but exhibiting limited proliferation are classified as medium-confidence, two-star resistant.

Adaptive resistance (assigned as Low-confidence/1-star) describes a dynamic process of rapid transcriptional reprogramming to transient stress rather than a fixed resistant phenotype. This category specifically encompasses cells exposed to short-term treatment (<1 month), where stable genetic or epigenetic adaptations are unlikely to emerge. In these cases, survival is more plausibly explained by transient, reversible stress responses rather than true resistance. Comparisons with dimethyl sulfoxide (DMSO)-treated controls—which serve as the most reliable sensitive reference—highlight the instability of this phenotype. Cell populations subjected to <1 month of exposure are therefore designated as low-confidence, one-star resistant.

Functionalities

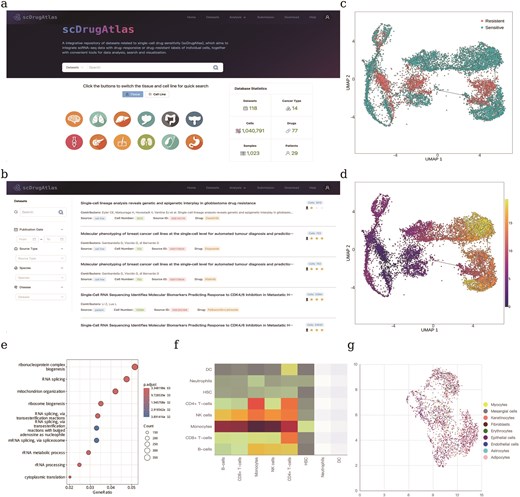

A website with user-friendly data visualization and analysis tools is provided to help users explore the wealth of data (Fig. 3a). Users can input a gene of interest to explore the scRNA-seq data with each cell coloured by its drug response label. Other popular analysis tools include differential expression analysis between sensitive versus resistant cell populations, pseudotime analysis for visualizing the cancer cell progression to drug resistance along with evolutionary trajectory. We summarized the functional modules as below:

• Dataset listing and search: users can search for single-cell drug response datasets of interest through keywords on the homepage. Each dataset has been associated with tissue or cell source, cell count, drug, and quality level of response labels. In particular, users can filter datasets by setting source type, species, release time, and disease on the Dataset Listing page (Fig. 3b).

• Gene search across datasets: user can search for genes of interest across multiple scRNA-seq datasets and narrow down the scope by species and tissue type. We use UMAP to display the expression levels of the gene across different datasets.

• Differential expression analysis: differential expression analysis between sensitive and resistant cells in a specific dataset or across two datasets can be easily conducted. The volcano plot is used to display differentially expressed genes. Moreover, users can launch functional enrichment analysis using the upregulated or downregulated gene sets here.

• Pseudotime analysis: pseudotime analysis is used to visualize the continuous progression of tumour cells along an inferred temporal trajectory (Fig. 3c and d). Each cell is assigned a pseudotime value computed by monocle3 tool [20], allowing users to capture the gradual transition from early to late cancer cell states, together with the response to specific drug treatments. This module helps in identifying the intermediate states that are most critical during the development of drug resistance, providing valuable insights into the dynamic nature of tumour evolution.

• Functional enrichment analysis: to better explore the biological functions of differentially expressed genes between sensitive and resistant cells, users can easily perform GO and KEGG enrichment analysis (Fig. 3e) via web interface. Enriched pathways are displayed using a bubble plot, where the size represents the number of associated genes and the colour encodes statistical significance.

• Cell–cell communication: user can click to calculate and display cell–cell communications between different types of cells using CellphoneDB tool [21]. Specifically, users are guided to focus on the strength of ligand–receptor interactions between resistant and sensitive cells (Fig. 3f).

• scRNA-seq data visualization: UMAP is used to display single-cell sequencing data, with cell types annotated using the SingleR tool [22]. Here, users can browse the proportion and number of sensitive and resistant cells within a dataset (Fig. 3g). Additionally, the expression profiles of genes of interest in different cells can be displayed through a heatmap on the Dataset Detail Page.

• Dataset download: users can download datasets of interest from the Dataset detail page. More importantly, we have constructed a batch of combined datasets regarding specific drugs, by using the Harmony tool [23] to remove batch effects. These integrated datasets are directly available for download on the website, with each dataset assigned a unique release date acting as a version identifier to ensure reproducibility. Such standardized resources are ready for use in training deep learning models for predicting single-cell drug response.

Case studies

Cross-study validation on Erlotinib-treated PC9 cells

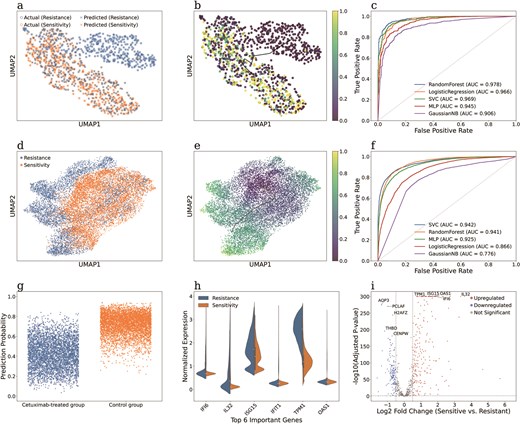

To evaluate the effectiveness of our curated datasets in building predictive models, we present two case studies. First, we utilized a well-documented scRNA-seq dataset derived from the nonsmall cell lung cancer (NSCLC) PC9 cell line (GEO accession: GSE196018 [24], scDrugAtlas ID: 126) as the training set. This dataset comprises 9 546 Erlotinib-sensitive cells (labelled as 1) and 9905 Erlotinib-resistant cells (labelled as 0), all of which exhibit well-defined phenotypic characteristics. Meanwhile, we incorporated another independent scRNA-seq dataset of Erlotinib-treated PC9 cells (GEO accession: GSE149383 [25], scDrugAtlas ID: 113) as test set. This dataset includes individual cells collected at multiple time points following drug exposure. To establish a test set for predictive model, we labelled 765 cells from day 0 (prior to drug exposure) as sensitive cells, while a total of 371 cells from days 9 and 11 post-treatment as resistant ones. The Harmony tool was used to mitigate batch effects between the training and test datasets. Pseudotime analysis of the test set demonstrated that PC9 cells progressively shifted towards drug resistance with prolonged Erlotinib exposure (Fig. 4a and b). Next, several typical classifiers—including random forest (RF), logistic regression, support vector classifier (SVC), multilayer perceptron (MLP), and Gaussian naive Bayes—were trained on the training data (detailed hyperparameter settings are listed in Table S1) and subsequently applied to the test data to evaluate their performance. The results showed that RF classifier demonstrated strong predictive power, achieving an accuracy of 87.41% and AUROC of 0.978 (Fig. 4c). This cross-study validation provides compelling evidence for the reliability of our dataset and assigned labels in building predictive models. Moreover, we observed significant difference in the predicted sensitivity probabilities of single cells between the Erlotinib-treated group with the control group (Fig. S1). The top six genes identified as most important by the RF model (RNF144B, IRS1, TAGLN, C4BPB, COL16A1, and TUBA1A) displayed distinct expression patterns between resistant and sensitive populations (Fig. S2). Several of these genes are closely linked to drug resistance. For instance, IRS1 is a key mediator of the PI3K/AKT signalling pathway known to contribute to EGFR-TKI resistance [26], while TAGLN is implicated in the epithelial–mesenchymal transition (EMT) process, which is well recognized to promote metastasis and therapy resistance [27]. We further depict the differentially expressed genes between resistant and sensitive cells (Fig. S3). Notably, S100A2, ALDOA, and SCNN1A are prominently featured, with S100A2 previously reported to induce EMT and enhance invasion in NSCLC models [28]. Among the top 20 genes ranked by feature importance in the RF model (Fig. S4), IGFBP3 and MALAT1 are highlighted have been previously reported to promote EGFR-TKI resistance, with MALAT1 in particular driving resistance through regulation of EMT and activation of the PI3K/AKT and MAPK pathways [29].

Cross-cell type validation on Cetuximab-treated HNSCC cells

We further conducted another cross-cell type case study using a Cetuximab-treated head and neck squamous cell carcinoma (HNSCC) dataset comprising 23 914 HNSCC cells from three distinct HNSCC cell lines: SCC1, SCC6, and SCC25 [30]. Among these, 13 040 cells were classified as sensitive (labelled as 1) and 10 874 cells as resistant (label as 0). Integrative analysis of single-cell drug response distribution and pseudotime trajectories revealed that HNSCC cells progressively transition towards a Cetuximab-resistant state (Fig. 4d and e).

To build a predictive model across cell types, SCC1 and SCC25 cells were used as training set, while SCC6 was reserved as test set. Similarly, multiple classifiers were trained on the training set and evaluated on the test set using the specific parameters detailed in Table S1. As shown in Fig. 4(f), SVC achieved the best performance with an AUROC value of 0.942, while both RF and MLP also yielded more than 0.9 AUROC values. These results demonstrated that the predictive models maintained strong generalization ability when applied to the previously unseen SCC6 cell line. To further evaluate the model’s performance at the single-cell level, we examined the predicted probabilities of individual cells in control and Cetuximab-treated groups (Fig. 4g). The majority of control cells were assigned high predicted values corresponding to sensitivity, whereas most Cetuximab-treated cells were assigned notably low predicted values indicative of resistance, leading to a clear separation between the two groups. Beyond predictive accuracy, we also explored the key biological features underlying the model’s discrimination between sensitive versus resistant phenotypes. Feature importance analysis identified the most contributive genes, and the expression patterns of the top six (IFI6, IL32, ISG15, IFIT1, TPM1, and OAS1) are shown in Fig. 4(h), as well as the top 20 genes according to their feature importance (Fig. S5). Notably, genes associated with interferon-stimulated pathways, such as ISG15, were significantly upregulated in resistant cells compared to sensitive cells, consistent with previous studies that have validated their potential roles in drug resistance [31,32]. Also, upregulation of IFIT1 and tumour-associated neutrophils has been shown to promote immune suppression and resistance to immunotherapy in poorly cohesive carcinoma [33]. Moreover, differential expression analysis further confirmed that TPM1 and OAS2 are strongly upregulated in resistant cells (Fig. 4i), exhibiting both large fold changes (Log2) and high statistical significance (−Log₁₀ adjusted P-value).

Taken together, these case studies demonstrate that our curated datasets not only enable the construction of highly accurate predictive models for identifying drug-resistant cell subpopulations, but also uncover biologically meaningful resistance biomarkers and regulatory pathways, underscoring the substantial potential and practical value of our resource in advancing cancer research.

Discussion and conclusion

The phenotype-based high-throughput screening primarily captures the overall drug response of tumour cells but falls short in revealing the difference of drug response at single-cell level. This limitation arises because bulk RNA sequencing (bulk RNA-seq) often produces signals dominated by growth-advantageous cell clones, thereby obscuring signals of the minority of drug-resistant cell subpopulations. As a result, the molecular mechanisms underlying tumour drug resistance remain largely uncharacterized.

We also noted other databases that aggregate scRNA-seq data to investigate tumour drug sensitivity and resistance. For instance, scDrugAct [34] offers a large-scale resource integrating single-cell transcriptomic profiles with drug perturbation data to delineate drug–gene–cell associations, highlight tumour microenvironment cell heterogeneity and drug response. Similarly, CeDR Atlas [16] integrates scRNA-seq datasets with CMap drug signatures to infer cell type-specific drug responses, with particular attention to potential side effects on normal cells. While both resources incorporate extensive single-cell transcriptomic data, they rely on drug perturbation signatures from CMap as references for response inference. Consequently, they lack direct single-cell-level evidence of drug response and cannot provide labelled datasets supportive for predictive model training. In contrast, scDrugAtlas places greater emphasis on building high-quality single-cell drug response datasets, wherein drug response labels are derived from experimental metadata and meticulously curated through manual annotation. Moreover, scDrugAtlas implements a confidence-level grading scheme for the labels based on the experimental evidence. To our knowledge, scDrugAtlas is currently the only database offering manually curated, single-cell-level drug response labels alongside batch-effect-corrected integrated datasets that preserve explicit sensitive/resistant annotations. These features render the resource particularly well suited for training and validating predictive models of single-cell drug response, offering unique advantages in identifying resistant subpopulations and elucidating mechanisms underlying drug resistance. Notably, scDrugAtlas has already demonstrated its utility through two case studies on Erlotinib (NSCLC PC9 cells) and Cetuximab (HNSCC cells), underscoring the value of these curated data resource. Despite the DRMref [17] database also paid attention to the single-cell drug resistance, the scale of data and the diversity of covered drugs and species remain significantly limited. Compared to DRMref, our database possessed nearly three times the amount of data, as well as more reliable drug response labels. To ensure the reliability of the drug response labels, we meticulously verified several factors: the origin of the cell tissue (whether from primary, recurrent, or metastatic lesions), the duration of drug exposure, and the presence of acquired resistance and continued cell proliferation.

We acknowledge a limitation inherent to current single-cell drug response studies: sensitivity labels are often inferred from untreated control groups, assuming that the majority of untreated cells are sensitive. While this assumption is standard in the field due to the destructive nature of scRNA-seq, untreated populations may contain a small fraction of intrinsically resistant cells, potentially introducing label noise. To mitigate this, scDrugAtlas incorporates a multitier confidence system. By integrating evidence such as long-term proliferative capacity and clinical outcomes (e.g. recurrence), we prioritize high-confidence labels that reflect robust resistance phenotypes, thereby minimizing the impact of potential noise in the control groups.

In addition to the advantages in dataset volume and label quality, we have also prioritized the development of functionality for comparative analysis between drug-sensitive and drug-resistant cells. By correlating the tumour cell evolutionary trajectories with the progression of cells towards drug-resistant state, users can easily identify the critical state of cellular transition from sensitivity to drug resistance during pseudo-time, which greatly facilitate the discovery of new drug resistance genes. Furthermore, we calculate the activity levels of signalling pathways in drug-sensitive and drug-resistant cell subpopulations, and conduct differential analysis based on the activity levels to reveal the drug resistance mechanisms of tumours at the single-cell level.

Author contributions

Y.W.: Software; Methodology; Investigation; Data curation; Visualization; Writing – original draft. W.H.: Conceptualization; Software; Methodology; Investigation; Data curation. X.R.: Investigation; Data curation. H.L.: Conceptualization; Writing – original draft; Writing – review & editing; Supervision. L.X.: Writing – review & editing.

Conflicts of interest

None declared.

Funding

This work was supported by the National Natural Science Foundation of China (grant number 62372229) and the Natural Science Foundation of Jiangsu Province (grant number BK20231271).
