Full-text chemical identification with improved generalizability and tagging consistency

Abstract

Chemical identification involves finding chemical entities in text (i.e. named entity recognition) and assigning unique identifiers to the entities (i.e. named entity normalization). While current models are developed and evaluated based on article titles and abstracts, their effectiveness has not been thoroughly verified in full text. In this paper, we identify two limitations of models in tagging full-text articles: (1) low generalizability to unseen mentions and (2) tagging inconsistency. We use simple training and post-processing methods to address the limitations such as transfer learning and mention-wise majority voting. We also present a hybrid model for the normalization task that utilizes the high recall of a neural model while maintaining the high precision of a dictionary model. In the BioCreative VII NLM-Chem track challenge, our best model achieves 86.72 and 78.31 F1 scores in named entity recognition and normalization, significantly outperforming the median (83.73 and 77.49 F1 scores) and taking first place in named entity recognition. In a post-challenge evaluation, we re-implement our model and obtain 84.70 F1 score in the normalization task, outperforming the best score in the challenge by 3.34 F1 score.

Database URL: https://github.com/dmis-lab/bc7-chem-id

Introduction

Chemical entities include drugs, compounds, chemical formulas, identifiers, etc. (1). Extracting chemical entities from a vast amount of literature is an essential step in various downstream tasks such as relation extraction (2, 3) and literature search (4). Chemical identification is a task to support this scenario, which consists of (i) named entity recognition (NER) that locates chemical entities in the provided text and (ii) named entity normalization (NEN or normalization) that links the entities to unique identifiers pre-defined in biomedical knowledge bases.

Several datasets such as BC5CDR (5) are proposed to facilitate research on chemical identification. Most consist of the titles and abstracts of PubMed articles with manually annotated chemical mentions and the corresponding identifiers. Recent studies put a lot of effort into achieving high performance on these abstract-level datasets in the NER (6–8) and NEN tasks (9, 10). However, there are few studies on tagging a full-text corpus consisting of the main body of a paper as well as the title and abstract. Since detailed descriptions of background, methodology and findings are mostly included in the main body, automatically annotating the full text can be more informative than annotating only the abstract (‘title and abstract’ and ‘abstract’ are interchangeable).

In this work, we conduct a systematic study of full-text chemical identification. We analyze two limitations of current models in tagging full-text PubMed articles. First, models’ generalizability to unseen entity mentions is limited (11), especially when entities appear in the main body. Our pilot experiment shows that the performance of an NER model on unseen mentions in the main body is lower than those in the abstract. Second, models make inconsistent predictions for the same entities within the same article due to the tagging inconsistency problem (6), which is worse in the main body than in the abstract.

We suggest using two methods to address the limitations. To improve the generalization ability of the model to unseen mentions, we use transfer learning, where the model is pre-trained on source data and then fine-tuned on the target data. This exposes models to more diverse chemical entities and contexts, improving entity coverage and generalizability. For the source data, we use existing chemical NER datasets (1, 5) and a synthetically generated dataset by synonym replacement (12).

To mitigate tagging inconsistency, we use a rule-based post-processing method called mention-wise majority voting. (While majority voting generally refers to an ensemble method in the context of machine learning, in this paper, it refers to our method for tagging consistency (Section Majority voting)). The method aggregates all inconsistent predictions for the same phrase in an article and changes all minority predictions to the majority, based on the assumption that (i) the majority is more accurate than the minority and (ii) the same words or phrases within the same article refer to the same concepts (e.g. entities). Our experiments show the method effectively improves NER performance despite its simplicity.

Additionally, we present a hybrid approach to improve recall while maintaining precision in the normalization task. Dictionary models usually achieve high precision but low recall due to the limited coverage of their dictionaries, whereas neural network models achieve higher recall but lower accuracy. We attempt to leverage the strengths of both while compensating for the weaknesses of each model. We first perform dictionary lookup and then use a neural model to further predict entities that do not match the dictionary. The hybrid model significantly improves recall, resulting in strong normalization performance.

We experiment with our methods using the NLM-Chem dataset (13), which consists of 150 full-text articles with chemical entity annotations. Based on the experiments, we submit our best models to the BioCreative VII NLM-Chem track challenge (14) and obtain 86.72 and 78.31 F1 scores in NER and NEN, significantly outperforming the median (83.73 and 77.49 F1 scores) and ranked first in NER. We found that our NEN models were underestimated in the official challenge evaluation due to implementation errors—after fixing the errors, we achieve 84.70 F1 score in NEN, surpassing the best score in the challenge by 3.34 F1 score. In sum, we make the following contributions:

• We identify the limitations of existing models in terms of full-text chemical identification: (i) low generalizability to unseen mentions and (ii) tagging inconsistency.

• We address the limitations using simple transfer learning and mention-wise majority voting methods. For normalization, we present a hybrid model combining dictionary and neural models to achieve higher recall while maintaining accuracy.

• Our system significantly outperforms the median in the official evaluation of the BioCreative VII NLM-Chem track challenge and even achieves the best score in NER (86.72 F1 score). In the post-challenge evaluation, our hybrid normalization model obtains the best score (84.70 F1 score).

Background

This section describes the background to understand the task and our methodology. We deal with full-text chemical identification as two separate tasks: NER and NEN. Specifically, we train NER and NEN models independently and combine them at the inference time. The NER model takes a sentence as input and is optimized to predict each token in the sentence. The NEN model uses the predictions of the NER model as input (i.e. predicted entity mentions) and assigns them to corresponding identifiers pre-defined in biomedical knowledge bases.

Named entity recognition

Normalization

Once the corpus is annotated by the NER model, an NEN model then links the predicted mentions to pre-defined biomedical identifiers. Each |$\hat{e}$| is fed into the NEN model E^NEN, and the model produces the identifier |$\hat{c}$| as follows:

Full-text dataset

Previous datasets for chemical NER and NEN have a limitation in that they consist only of the title and abstract of the paper (1, 5, 16). Recently, Islamaj et al. (13) propose NLM-Chem, the first large-scale dataset with manually annotated chemical entity mentions and identifiers, consisting of 150 full-text PubMed articles. The data are designed to be rich in chemical entities that are difficult for models trained on other previous chemical NER datasets to identify.

NLM-Chem challenge

BioCreative VII introduces a new challenge, ‘NLM-Chem Track: Full-text Chemical Identification and Indexing in PubMed articles’ (14) (https://biocreative.bioinformatics.udel.edu/tasks/biocreative-vii/track-2/). The challenge presents two tasks, but we focus on the Chemical Identification task in this work and leave the Chemical Indexing task for future work. In addition to 150 annotated articles in the original NLM-Chem data, the challenge provides additional 54 full-text articles manually annotated in a similar process when constructing NLM-Chem. Table 1 shows the statistics of the NLM-Chem and challenge data. We use the test set of NLM-Chem (50 articles) as the validation set. The additional 54 articles are used for the official evaluation.

Preliminary study

We determine whether a current model is sufficient or limited in its ability to tag full-text articles. We focus on NER in this analysis because a strong NER model is a prerequisite for high normalization performance. We use the Bio-LM-large model (17) with a linear output layer as the NER model. We train the model on the full NLM-Chem training set and measure the performance on the abstract and the main body of the validation set separately. Table 2 shows that the performance on the main body is lower by 0.9 F1 score than that on the abstract, indicating that tagging full text is relatively challenging compared to tagging only abstract. We systematically analyze what factors make this difficulty in the following sections.

Generalization to unseen mentions

In the biomedical domain, it is of paramount importance to generalize unseen mentions that the model did not experience during training because synonyms and newly discovered biomedical concepts constantly emerge in the literature (11). Since the main body contains more diverse entities and complex context than the abstract, the generalizability issue (11, 18, 19) can be critical in the main body. Follow Kim et al. (11), we partition all mentions e in the NLM-Chem validation set into three splits as follows:

Table 2 shows the performance on Syn and Con in the main body is consistently lower than that in the abstract, indicating that the model is limited in terms of generalizability to unseen mentions. Interestingly, the performance difference is very noticeable on Syn (3.1 F1 score). This may be because entities are often represented in different ways throughout the paper, especially in the main body.

Tagging inconsistency

Since identical words or phrases within the same article often refer to the same concepts or entities, models should be consistent in predicting the same text spans. Unfortunately, current sentence-level models classify the same spans into different ones, which leads to the tagging inconsistency problem (6, 20). In this section, we measure how much tagging inconsistency occurs in the abstract and main body, respectively. Let |$\mathrm{W}_n$| be all unique phrases (i.e. n-grams) within the n-th article, |$g_{n}(p)$| be the total number of a phrase p within the n-th article and |$h_{n}(p)$| be the total number of positive predictions for the phrase p within the n-th article. We consider model prediction for the phrase p to be inconsistent if a function ϕ_n returns 1, which is defined as follows:

Table 3 shows that label inconsistency is insignificant, supporting our assumption that phrases within the same surface forms are likely to be the same entity (or not entity). On the other hand, tagging inconsistency occurs frequently, and it is more pronounced in the main body than in the abstract, indicating that it needs to be addressed to obtain satisfactory performance in full-text chemical identification.

Method

From our analysis, we identified low generalizability to unseen mentions and tagging inconsistency as obstacles to tagging full-text articles. We use transfer learning and mention-wise majority voting methods to address them. In normalization, we use a hybrid model to improve recall using a neural model while maintaining high precision of a dictionary model. See the paper (21) for a simpler system description.

Transfer learning

We pre-train a model on source data and then fine-tune it on the target data (i.e. NLM-Chem). Since pre-training with additional datasets exposes models to more diverse chemical entities and contexts, this can improve the generalizability. We use two popular chemical NER datasets CHEMDNER (1) and BC5CDR (5) as the source data. At the fine-tuning stage, we randomly initialize the output layer and only reuse the rest of the model parameters.

Data augmentation

Dai et al. (12) augment training data by replacing entity mentions with their synonyms. This allows the model to learn different representations of entities, which can help improve generalizability to morphological variations. Following the work, we generate the new synthetic data NLM-Chem(syn) by replacing the mentions in NLM-Chem with their synonyms, which are sampled from the Comparative Toxicogenomics Database. We use NLM-Chem(syn) as additional source data for transfer learning.

Majority voting

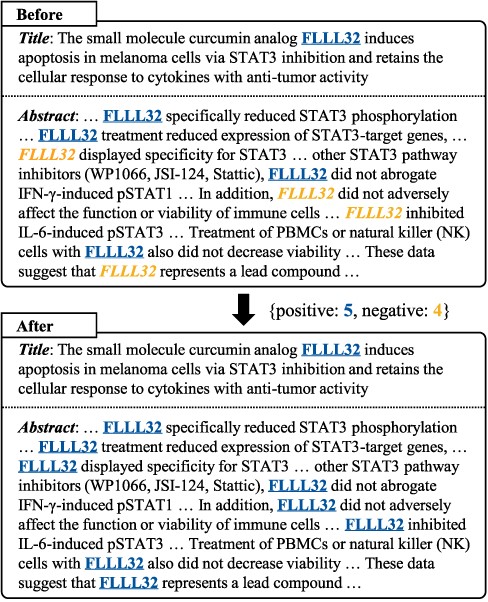

To alleviate tagging inconsistency, we use a majority voting method that aggregates model predictions in full text (Figure 1). First, we collect all inconsistent predictions in the same article, where the inconsistency is defined by Equation (4). We then compute the majority for model predictions and change all the minority predictions to the majority. Luo et al. (6) used a similar post-processing method to ours in their work, but the method only changes negative predictions to positives, which might be detrimental to precision. On the other hand, we also consider the direction from positives to negatives, which reduces false positives and improves precision. Since majority voting can be noisy if the target phrase does not frequently appear in the article, we apply the method only when the number of the phrase is greater than a threshold τ.

Hybrid model

Hybrid model consists of a dictionary model and a neural network model. The dictionary model first performs normalization based on string matching between the target mentions and the dictionary after applying several pre-processing rules such as lowercasing and removing punctuation. For mentions that are not normalized by the dictionary model, the neural model further performs the process. The neural model retrieves top-k similar entities to the given mention from the biomedical dictionary |$\mathcal{V}$|⁠. To deal with the CUI-LESS class, which means that a given entity does not match any CUIs in the dictionary, we add a special embedding and classify mentions into the class if the embedding is included in top-k results.

Experiments

Evaluation

We evaluate our models in the BioCreative VII NLM-Chem track challenge. For NER, entity-level precision (Prec.), recall (Rec.) and F1 score (F1) are used. For normalization, unique CUI predictions and labels for each article are compared first and then precision, recall and macro-averaged F1 score are calculated based on the article-level true positives, false positives and false negatives (13, 14).

Implementation details

We select Bio-LM-large (17) as our NER model for its superiority compared to others (See Table 6). For NER, we search best checkpoints and hyperparameters of NER models, based on F1 score on the validation set at every training epoch. We further trained NER models on the validation set by 20 epochs for the final submission. The max length of input sequence is set to 512. We use the batch size of 24 and the learning rate of 1e−5. In synonym augmentation, NLM-Chem(syn) is 3x larger than the original data. For the majority voting method, we only use entities that are longer than 2 and appear more than 40 times in the same article (i.e. τ = 40). For normalization, we use the 1 April 2021 version of the Comparative Toxicogenomics Database as our chemical dictionary. We further expand the dictionary using mentions annotated in NLM-Chem. For the neural model, we train BioSyn (9) with the SapBERT encoder (10) on NLM-Chem using the same hyperparameters as suggested by the authors. We search for the best neural NEN model checkpoints using F1 score in the validation set.

Sub-token entities

The NLM-Chem data have many sub-token entities that are sub-strings of a token rather than the whole string. For example, the token ‘Gly104Cys’ has two sub-token entities ‘Gly’ and ‘Cys’. In the official evaluation of the challenge, models should predict sub-token entities, not the whole tokens. We found that sub-token entities mostly appear within mutation names, and about 90% of sub-token entities can be processed with simple regular expressions. Based on this, we perform post-processing on sub-token entities, which greatly improves performance in the official evaluation.

Final submission

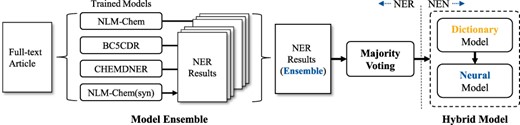

Ensemble methods theoretically reduce expected generalization errors by reducing the variance. To boost the performance in the challenge evaluation, we build majority voting ensemble models that combines predictions from different models trained on different datasets (See Table 7). For NEN, we use a single hybrid model. Figure 2 illustrates our final system for the challenge.

Results

Table 4 shows top ten submission results in NER and NEN, respectively. In NER, our top three systems significantly outperformed the median and other 88 submission results from 17 teams and ranked first, second and third, respectively. On the other hand, our systems did not make it into the top ten in NEN despite high performance in NER. After the challenge, we found some errors in our implementation of the normalization model, which significantly degraded the performance. Thus, we re-evaluate the NEN performance on the test set published after the challenge. As shown in Table 5, we achieved 84.70 F1 score after fixing the errors, which is higher than the best score in the challenge by 3.34 F1 score. From these results, we can conclude that the hybrid model is promising for future practical applications. Consistent with our results, a concurrent work shows the hybrid approach improves the performance (22).

Analysis

Language model selection

We experiment with several pre-trained language models common in the biomedical domain to select the best sentence encoder in NER: BioBERT (8), PubMedBERT (23) and Bio-LM (17). As shown in Table 6, Bio-LM-large outperforms the other models. Although BioBERT usually performs well on many tasks and achieves similar performance with PubMedBERT and Bio-LM, it performed much worse on NLM-Chem. Differences in vocabulary may have a significant impact on chemical NER performance. Also, PubMedBERT-full performed better than PubMedBERT, indicating that pre-training on full-text articles may be effective for chemical NER at the full-text level. Bio-LM-large performed better than Bio-LM-base, showing that model size can affect performance.

Ablation study

Effect of transfer learning

Table 7 shows that transfer learning improved models’ performance, especially recall. Although the synonym replacement method does not require the cost of manual annotations, it can be more effective than using existing hand-labeled datasets.

Effect of model ensemble

Table 7 shows that ensemble models outperform single models. Besides, we analyzed how the effect of ensembling varies according to the combinations of single models. We designed three ensemble models, ‘Fine-tune only’, ‘Transfer only’ and ‘Both’, which indicate the combination of models trained only with NLM-Chem, the combination of only transferred models and the combination of both types of models, respectively. As a result, we found that ensembling models trained on different sources can be effective.

Effect of majority voting

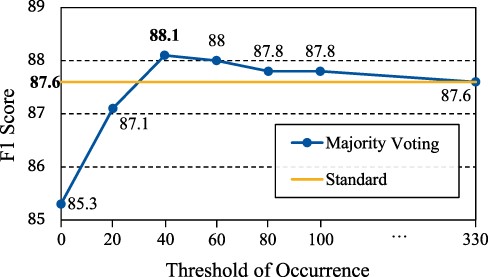

Table 7 shows that majority voting is simple but consistently improves the performance of ensemble models. Also, we see how the performance of the single Bio-LM-large model changes when changing the threshold of occurrence τ. Figure 3 shows the performance peaks at τ = 40 and decreases, indicating that finding the optimal τ is important.

Effect of hybrid model

As shown in Table 8, the dictionary model works very well in normalization if we have a high-quality dictionary. However, the method has low recall due to the limited coverage of the dictionary. Our hybrid model significantly improved recall, resulting in a higher F1 score.

In-depth analysis

We pointed out the two limitations of existing models that hinder tagging full-text articles. We confirmed that transfer learning and majority voting improve the overall performance in Table 7 and Figure 3, but further analysis is needed to figure out the effect of the methods in depth.

Q1. Does transfer learning actually improve generalization ability to unseen entities?

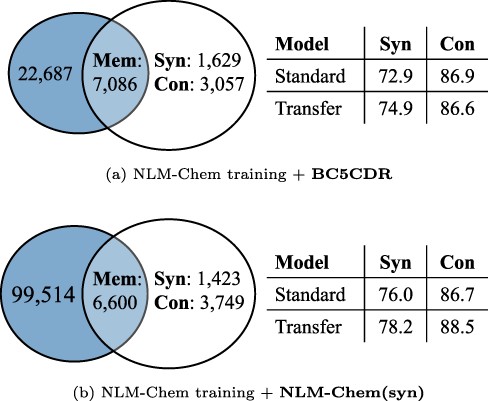

Table 7 shows that transfer learning improves model performance, especially recall. Furthermore, we see whether this performance improvement was achieved by simply increasing entity coverage during training or by improving true generalizability to unseen entities. A way of measuring generalizability is to split the dataset as in Equation  (3) and compare performance of a model with/without applying transfer learning on Syn and Con, where the set of mentions |$\mathbb{E}_\text{train}$| and the set of CUIs |$\mathbb{C}_\text{train}$| include the NLM-Chem training set and a source dataset used in transfer learning scenarios. Figure 4 shows the number of mentions of Mem, Syn and Con of the validation set and the model performance, when source data are BC5CDR and NLM-Chem(syn). Regardless of source datasets, performance on Syn is improved, indicating that transfer learning can improve generalizability to synonyms. From these results, we confirm that the performance improvement is not simply due to increased entity coverage.

Q2. When is majority voting particularly effective?

The method is particularly effective when there are many mentions of the same entity in one article, and there is severe tagging inconsistency. For instance, the article with PMID 2 902 420 has 137 mentions of the entity ‘FLLL32’, and models predicted about 70% of the mentions as entities and the rest as not. In this case, the method corrected about 30% errors, which significantly improves performance. Also, Table 9 shows that majority voting is particularly effective in the main body, where the problem is much more severe than in the abstract.

Q3. Can majority voting improve generalization ability to unseen entities?

Since recognizing unseen mentions is more difficult than recognizing memorizable mentions, tagging inconsistency will occur more for unseen mentions. It will be interesting to see if majority voting can effectively mitigate tagging inconsistency for unseen mentions. As shown in Table 9, while the method significantly improved performance on Mem, it was not effective on Syn and Con. Since recall on unseen entities (i.e. entities in Syn and Con) is insufficient, the majority may be false negatives, and thus the method may not be as effective.

Error analysis (NER)

We analyze 100 error cases of our NER model using the test set.

Reoccurrence of the same errors

We found that the model repeated the same errors within the same article. For instance, 5% of the whole error cases occurred since the model failed to extract the entity mention ‘pKAL’ (the Korean plant Artemisia annua L.). Majority voting can be effective against these repeated errors if the majority predictions are correct and are greater than the minority repeated errors. However, since the model predicted all occurrences of ‘pKAL’ as negative, majority voting could not correct the repeated errors, which is a limitation of the method.

Abbreviations

Forty percentage of errors are due to abbreviations. It is challenging to deal with abbreviations as their names are ambiguous and have less information. The full names of abbreviations are often defined in the front parts of the paper such as the abstract or introduction; thus in further work, we can utilize these definitions to help identify abbreviations.

Other insights

The model sometimes made unexpected predictions including special characters, and these false positives accounted for 6% of all errors. For instance, the model predicted ‘APO(’ as an entity given the context ‘The stability of APO(ANTR) nanodrugs was tested by storing them at 4 C for 30 days.’, while the model correctly extracted ‘APO’ in most other contexts. Also, the model sometimes did not extract the entire entity ‘Mg-PCL’, rather it extracted ‘Mg-’ and ‘PCL’ separately. Many chemical entities are composed of complex combinations of alphabets and special characters, making it difficult for the model to distinguish exact boundaries.

The model appears to be sensitive to even small changes in entity forms. We found that the model successfully extracted the entity ‘11Cha1’ but failed to extract other entities with similar forms, such as ‘11Cha2’, ‘11Cha3’, ‘11Cha10’ and ‘11Cha11’, even when they appeared in the same sentence ‘Less hindered groups on ring A such as hydroxyl, methoxyl, and/or methoxymethoxyl (MOM) (e.g. 11Cha1, 11Cha2, and 11Cha3) increased the activity.’ It seems that the model lacks the ability to understand sentence structure or context pattern. Such ability should be improved by developing better language models or incorporating syntactic information into the model.

Error analysis (NEN)

We manually analyze 300 error cases from the test set. The most common errors (71.3%) occurred due to limited coverage of the dictionary, and so the model incorrectly predicted entity as CUI-LESS. The second type of error, accounting for 14.3%, occurred when the model was misled by entities with similar forms to a target entity. For instance, the target entity ‘polyamide’ and a synonym ‘nylon’ are not similar even though they are the same entity, so the model chose a more similar entity ‘polymer’. Finally, some entity mentions with the same surface form can have different CUIs depending on the context, producing 14.3% errors. For instance, while ‘DHA’ in a test article refers to ‘Docosahexaenoic Acid’, in the dictionary, ‘DHA’ refers to ‘Dihydroartemisinin’, making a false prediction.

All types of errors we mentioned above can be addressed by using contextual information. Our model relies on surface forms of mentions to perform the task, which limits the NEN performance. Adopting recent models using contextual information (24, 25) to full-text chemical normalization would be interesting, and we leave this for future research.

Conclusion

In this paper, we studied chemical identification in full-text articles. We found that low generalizability to unseen entities and tagging inconsistency are problems and should be considered to effectively perform the task. We showed that the problems are addressable using transfer learning and mention-wise majority voting. Also, we showed that combining dictionary and neural models is effective for normalization. We demonstrated the effectiveness of all methods using the NLM-Chem dataset through ablation studies and achieved strong performance in the BioCreative VII NLM-Chem track challenge.

Supplementary data

Supplementary data are available at Database Online.
