STOREFISH 2.0: a database on the reproductive strategies of teleost fishes

Abstract

Teleost fishes show the most outstanding reproductive diversity of all vertebrates. Yet to date, no one has been able to decisively explain this striking variability nor to perform large-scale phylogenetic analyses of reproductive modes. Here, we describe STrategies Of REproduction in FISH (STOREFISH) 2.0, an online database easing the sharing of an original data set on reproduction published in 2007, enriched with automated data extraction and presentation to display the knowledge acquired on temperate freshwater fish species. STOREFISH 2.0 contains the information for 80 freshwater fish species and 50 traits from the analysis of 1219 references. It is anticipated that this new database could be useful for freshwater biodiversity research, conservation, assessment and management.

Database URL: www.storefish.org

Teleost fishes are the most speciose taxa of vertebrates with >34 000 species described so far (1). They have colonized almost every possible marine and freshwater habitats from tropics to polar regions (2). They displayed the most outstanding reproductive diversity of all vertebrates (2–4). This includes, among others, egg diameter, larval size, gender systems, spawning dynamics, modes of fertilization, mating systems, secondary sexual characteristics and parental care (2, 3). Yet to date, no one has been able to decisively explain this striking diversity nor to perform large-scale phylogenetic analyses of reproductive modes (3, 4). This is mainly due to the lack of information on the reproduction of numerous species (3) despite the recent progresses on their phylogeny (∼80% of the families) (5). Therefore, only few studies attempted analysing the evolution of a handful of reproductive traits for a large number of species (6) while many more works compared numerous traits but for a low number of species (7). The comparative analysis of reproduction of teleosts is useful to understand trade-offs between reproductive traits (e.g. oocyte diameter and fecundity) and highlights common patterns of life history (e.g. 8, 9). Reproductive traits are also increasingly being used, often combined with other traits, in a wide range of applications in ecological and evolutionary research (10–12), such as for river (13) and fisheries (14) management, to predict fish invasions (15) or for the assessment of climate change (16).

Trait-based approaches first require gathering data on several traits, which could be defined as measurable ecological, life history, morphological, physiological and behavioural expressions of species’ adaptations to their environment (11). Cano-Barbacil et al. (12) recognized two types of traits (1): biological traits describing life cycle, physiological and/or behavioural characteristics including maximum body size, longevity, or feeding and reproductive strategies and (2) ecological traits or requirements that are linked to habitat preferences, water flow, pollution or temperature tolerances (12). This essential step is time-consuming and usually considered tedious and tricky to perform because no efficient automatic system exists (17–19). Despite progress to transform data described in natural language (free text) into a computable database that can then be statistically analysed, it is indeed still necessary to manually search information in each reference (18). This explains why phenomics—as a counterpart to genomics—which aims to make large-scale comparisons of phenotypes, is still in its infancy, and today only semi-automatic approaches appear feasible (20) [see, for instance, refs. (17, 21)]. For fish, the largest database ever developed is FishBase [www.fishbase.org (22, 23)]. Created by Daniel Pauly and Rainer Froese in the late 1980s (http://www.seaaroundus.org/tag/fishbase/), this database was initially conceived to service the fisheries science community and has since evolved to cover many aspects of the life history of fish (24). It is today the electronic encyclopaedia on fish (25) and in recent years has received more citations per year than any other fisheries reference (26). Many other databases were also developed for fish, such as FishTraits [http://www.fishtraits.info/ (11)], FishTEDB [http://www.fishtedb.org/ (27)], Osteobase [http://osteobase.mnhn.fr/ (28)], FishEthoBase [http://www.fishethobase.net/ (29)] or TOFF [http://toff-project.univ-lorraine.fr (30)], often with links to FishBase.

In 2005, a research programme was launched to evaluate whether it is possible to extrapolate the zootechnical knowledge acquired from one species to others to help diversifying aquaculture production (31). The rationale was that if clusters of species were sufficiently homogeneous, this could allow predictions of biological patterns between species (31). Once completed, this approach would allow the application of existing zootechnical technologies proven to work on one species to others belonging to the same cluster, thus lowering the uncertainty when farming a new species and saving both time and money (32–34). In order to evaluate the reliability of such a comparative approach, reproduction was used as a proof-of-concept function because its control is a prerequisite for domesticating new fish species (31). This research programme was restricted to temperate freshwater fishes inhabiting chiefly Western Europe because European inland aquaculture had several opportunities for diversification (31). We also anticipated that enough reliable information was available in the literature (31). Because FishBase did not contain enough data for the targeted species at the time, the first goal of this project was to develop a new database, which was entitled STOREFISH, acronym for STrategies Of REproduction in FISH (31). The entire development of the STOREFISH database was divided into four main tasks [see Figure 1 in Teletchea (35)]. The first task was to establish a structured and semantically formalized ontology (17, 19), which could be defined as a controlled vocabulary that describes objects and the relations between them in a formal way (36). Based on a 6-month literature search, a preliminary list of 135 traits was established, among which 50 were finally kept. For each of them, a definition was proposed and validated by a group of 10 fish specialists (31). Among the 50 biological and ecological traits (Table 1), 23 are categorical (e.g. egg buoyancy) and 27 are numerical (e.g. oocyte diameter) [see also Frimpong and Angermeier (11)]. They were grouped into five main categories: 7 traits for egg, 7 for larvae, 12 for females, 9 for males and 15 for spawning conditions (31). The second task was to select species among the 150 initially identified based on a few reference books and FishBase: 80 (belonging to 19 families) were finally included in the database; for the others, very little information was found (31). The third task consisted of searching and reading publications. It appeared particularly difficult because most relevant references were dispersed and old (usually not available online at that time, but see https://www.biodiversitylibrary.org/). This required going to different public institutions, such as the National Museum of Natural History in Paris, which host old articles, and manually photocopying hundreds of articles or other references. The fourth task consisted of manually entering data into an Excel® sheet, which was performed by the last author and lasted for ∼1.5 years. After ∼2 years of work, >80% of the 4000 cells (80 species × 50 traits) of the database were filled corresponding to the analysis of >1000 references (31).

From these original or primary data, a set of secondary data (16) was manually generated by the last author for species (65 out of 80) and traits (29 out of 50) for which enough information was available. Based on this new data set, a first study aimed at establishing a typology of reproductive strategies to evaluate whether it is possible to extrapolate the knowledge acquired on one species to other (37); this new classification confirmed that extrapolations concerning biological traits cannot be based on phylogeny only and differed significantly from classifications earlier proposed (8, 9, 13, 14). Two additional studies (i) demonstrated that the relationship of oocyte diameter and temperature to incubation time for temperate freshwater is different from marine fish (38) and (ii) highlighted how the different trade-offs at the early life stages ensured that first feeding of larvae of temperate freshwater fish occurs in spring and early summer (39). A fourth study summarized the differences in reproductive traits between freshwater and marine fish and highlighted the possible implications for aquaculture practices (40). Altogether, the five articles linked to the STOREFISH project were cited by ∼200 articles (including 47 self-citations), with a mean of 14 ± 8 per year. The articles are grouped into five categories: basic biology (n = 80), aquaculture (n = 61), climate change (n = 36), invasive species (n = 9) and fisheries management (n = 7). This assessment demonstrates that the potential applications of this project, as expected in 2007, go well beyond aquaculture and that many researchers are looking for open-access data (12, 16). In addition, three of the four articles using the data in STOREFISH were much more cited than the original publication, which partly explains the reluctance of data holders to make data available because of the lack of proper citation (16). Also, even though we applied for several grants in the past decade to develop an online version and enlarge the database, we were never able to obtain any funding (35). In conclusion, the STOREFISH project may illustrate why data holders are reluctant to make primary data available given the relatively limited perceived advantages, the effort involved in preparing the data as well as the lack of funding and proper citation; so altogether, the lack of databasing work by research institutions (16, 41).

The aim of the present article is to describe STOREFISH 2.0, an online database easing the sharing of the original data published in 2007 (31), enriched with automated data extraction and presentation to display the knowledge acquired on temperate freshwater fish species. It is anticipated that this new database could be useful for freshwater biodiversity research, conservation, assessment and management (12, 16).

Material and methods

Data processing

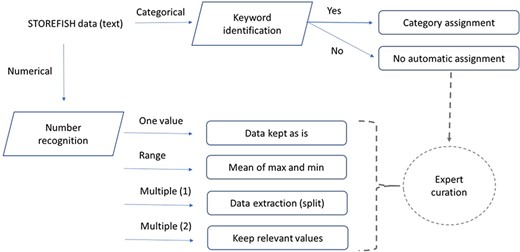

Each trait was isolated from the original Excel® database and modelled to establish how secondary data should be automatically generated (Table 1). The relevant columns and lines were first exported as a csv file and then processed using Python regular expression. The general overview of the process used to extract primary data is presented in Figure 1. For categorical traits where one or more categories were present, a keyword search was performed on the primary data. If the keyword(s) search was successful, the category value was assigned, otherwise an expert curation was required to avoid any ambiguity. For numerical traits, three type of values were mostly present: (i) one number, which was extracted as is; (ii) one interval if a hyphen was between two numbers—in this case, the mean of the two numbers was calculated; and (iii) multiple numbers (single or interval)—in this situation, only the first value (or mean of an interval) was stored. Some traits contained only qualitative data as in egg buoyancy, or spawning substrate and other traits contained both numerical and qualitative values as egg diameter or larval size upon hatching (31). In this case, both numerical and categorical extractions may be performed but only the relevant data type is displayed in STOREFISH 2.0 (Table 1).

Database setup

We used the Django framework from previous database setup such as a in the repository of red blood cell proteins called RESPIRE (42) and a web portal for virtual screening management called dockNmine (43). We reused some of the core routines in STOREFISH 2.0, for instance those involving mining routines making use of Biopython (44) and those for literature management. The database is powered by Apache 2.4 web server running on a virtual machine powered by Ubuntu 18.04 LTS, mysql 5.6 is used to store data content. To enhance the user experience, bootstrap 3.0 and Amcharts javascript libraries are used. The database content is backed up every day.

Results and discussion

Transformation of primary data into secondary data

The original STOREFISH database was filled in with 3256 unique traits description, i.e. 81.4% out of a maximum of 4000 annotations (80 species with 50 traits each). These traits listed in 1949 Excel® lines were first split into 14 836 primary data in csv files as many lines contained more than one unique annotation. The processing of these csv files allowed us to identify 8236 primary data for numerical traits and 6600 primary data for categorical traits. The processing of primary data using regular expressions for numerical traits allowed to recognize 1836 single numerical values, to extract the mean of 2518 numerical intervals, and 3396 additional numbers when more than one number was found in the original annotation. This secondary data processing allowed to extract 94% of the primary data found in the initial version of STOREFISH for numerical traits. The unambiguous assignation of traits by category could also be performed for 53% of primary data. The remaining ambiguous cases required expert curation; some primary data were not conclusive for the considered trait. A few examples for each of the treatments and special cases requiring human curation are indicated below.

Depending on the difficulty of treatment of the primary data content, three types of processing routines were performed (Table 2). In the first case, computational transformation allowed to unambiguously determine the secondary data value. For oocyte diameter in Barbatula barbatula, a single numerical value ‘1’ was present in the primary data; therefore, the number was recognized ‘as is’ without any further treatment and converted into a float numerical value of 1.0. When an interval was found, such as for the oocyte diameter of Tinca tinca (0.4–0.5), it was converted into the average float value of 0.45. When more than one number was detected, as for the oocyte diameter in Lepomis gibbosus (0.529 and 0.477), only the first one was kept. Primary data may also contain mean values with the plus–minus separator sign. In that situation, the mean value was kept and the standard deviation was not considered. In all three situations, only a single numerical value was extracted, converted when possible to the mean value for the parameter. When no numerical value was present, like in the oocyte diameter for Aphanius iberius (‘big eggs’), no secondary data was obviously computed. Data processing was equally unambiguous for categorical data where a single keyword, or a short list of keywords, defines the trait. The ‘photophobic’ status for the reaction to light trait in Alosa alosa was straighforward from the single value found in the primary data, as for the spawning season (months) for Oncorhynchus tshawytscha (September and October). Even when complex sentences were present in the primary data, as in the sibling intracohort cannibalism annotation for Esox lucius, exact keyword matching (‘cannibalism’) allowed to qualify the category without error. In this long sentence, multiple data were present: the expert indicated that the starting day of cannibalism was present, alongside the fish length at this time. Those traits are however not addressed in the present database, but we plan to extract more secondary data in the future.

In the second case, transformation required more attention than single numerical or categorical value extraction detailed earlier. The values extracted were correct but incomplete. An example is given for the Onset of Oogenesis in Ictalurus punctatus where 2 months were correctly detected (November and March), but the intermediate months were not taken into account. Indeed, primary data contained the period description (from November until March), but many literal forms may exist even in this simple case: (i) from November to March, (ii) starting in November and ending in March and (iii) ending in March after slow increase in November. Since all sentences may be valid English (or non-native writing in English) and can be found in publications, caution must be taken and expert curation was performed to adjust the initial list to a more correct one (November, December, January, February and March). In most cases in this situation, no secondary data were extracted; so, the expert curation is mandatory to validate data, if they should be present; such primary data have never been analysed before (31, 37–40) and explained why they required additional work to be transformed into reliable secondary data.

In the third case, the aforementioned methods lead to inconsistencies or errors. Expert curation was then mandatory to correct these errors. We illustrate these situations with two examples for the oocyte diameter trait. For the species Blicca bjoerkna, three interval values were detected. Due to the sentence ordering, a percentage was wrongly transformed into millimetres, the secondary data becoming 75.0 mm instead of 0.884 mm (mean of the valid first interval). Since there were three intervals (and thus six numerical values), only an expert can indicate which value has to be kept in the secondary data annotation. After curation, the secondary data extraction was kept, but the curated and corrected value was saved in a dedicated field in the database. A more complex example is for Morone saxatilis. For this species, the numerical value picked was the correct one (838), but the authors had indicated the numerical value in micrometres instead of millimetres, as found in most articles. This situation could be handled using complex bioinformatics treatments, but after evaluation, we found the expert annotation to be more robust, in particular less prone to false-positive detection.

After careful analysis of the primary data present in the initial STOREFISH, we have set up a limited set of transformations to ensure that most data were transformed into numerical and categorical data unambiguously. These transformations were kept conservative, with simple transformation rules, so our expertise could concentrate on the most tedious cases, where multiple data were detected (up to 36 numerical in primary data for some entries). The programmatic transformation of data led to the automatic annotation of 75% of the original corpus, manual curation added an extra 10% and the remaning values will need further evaluation (contradictory or non-existing data in primary data) for a future release of the database. Upon curation, we have set up more rigid naming conventions for future data incorporation and identified the need to have shorter primary data text extraction, which could ease the arrival of new curators.

Overview of STOREFISH 2.0

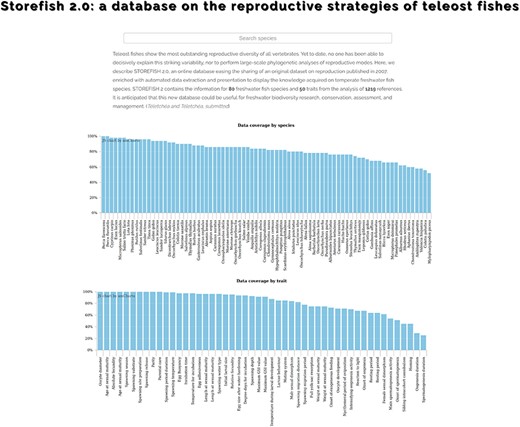

This database contains the information for 80 freshwater fish species and 50 traits from the analysis of 1219 references (Figure 2). After a short description of the content of the database, the first page presents two graphs displaying the data coverage by species and traits, both classified from the best to the least known, which allows a rapid assessment of the knowledge acquired in the past decades (Figure 2). The data coverage ranges from 100% for yellow perch Perca flavescens to 52% for black carp Mylopharyngodon piceus, and from 100% for oocyte diameter to 25% for spermatogenesis duration (Figure 2). The second page presents the 80 species with their scientific name, order, family and common name. By default, species are alphabetically ordered, but they can also by classified by their order, family or common name. Species can be displayed one by one with on the top of the page an overview of the trait completeness, total data found and number of references used; and when available, a picture provided by the last author (45, 46). An external link to FishBase was also added. Then, a graph shows the number of data found for each of the 50 traits with a different colour for egg, larvae, female, male and spawning conditions. Two contrasting examples are provided in Figure 3, which highlights a species, European perch Perca fluviatilis, for which many information has been found and one barely known, bleak Alburnus alburnus. These two examples illustrate that most studies focused on economically valuable species and conversely fish species with a small distribution range as well as endemic species present lower coverage and data availability in trait databases (12). This represents the biggest obstacle for biodiversity data users because many species and regions are still highly under-sampled or completely unrepresented (e.g. rare taxa, regions that are difficult to access) in online databases (10, 25). Conversely, it also demonstrates that we accumulated considerable traits information for some species by painstakingly reviewing accessible literature (11). Then, five tables present in detail the information for each trait, with five columns: trait id, trait, primary data (raw information as originally entered in the Excel® sheet by the last author), secondary data (extracted as explained in Figure 1) and reference. We chose to provide primary data online because it allows detecting knowledge gaps regarding trait information and possible discrepancies among fish-trait databases (12). It could also be useful to evaluate the intraspecific variability of traits, that is, differences of traits within species for instance due to different environments or geographical variation (12). Intraspecific trait variability is frequently neglected as trait values are summarized as averages per species; thus, only secondary data (16) are available in most publications, or it is assumed to be negligible compared to interspecific variability (37–39), which might lead to biased results (10, 12). Secondary data were automatically extracted and manually curated when necessary (Figure 1), and then used to perform the graphs as well as the univariate statistics showed in the database.

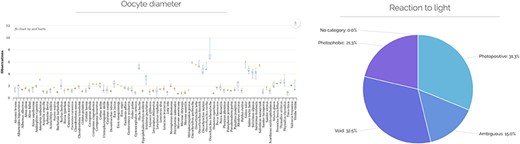

The third page presents for each of the 50 traits, grouped into the five main categories, the definition described in Teletchea et al. (31). It is possible to display all information acquired for each of the 50 traits by clicking on it. The third page presents the reference with a graph showing the number of references per year. The oldest reference was published in 1928, while the most recent analysed is in 2010; the last author stopped looking for references in the past decade. It is anticipated that many more articles have been published on the reproduction of those species and therefore new data will now be regularly added. By clicking on each reference, it is possible to access all data extracted in the database linked to it. The fourth page entitled statistics presents univariate analysis from the secondary data, using box plots for numerical traits, and pie charts for categorical traits (Figure 4).

Future updates of STOREFISH 2.0

Although the call for open-access data is becoming louder, long-term and large-scale data are still difficult to obtain (16). This may be due to the fact that only few water managers, policymakers or even scientists are aware that globally shared open-access data can be useful (16). Developing an online database is a long journey and first requires the clear standardization of trait definitions, better known as ontologies, which are not yet available for many taxa, hampering data gathering and sharing (10, 19). Such standardization may result in researchers concentrating their efforts on a limited number of traits (50 in STOREFISH) and, therefore, reducing research of other traits that may be revealing for particular groups or poorly understood ecological functions (10). Then, standardized protocols and corresponding database tools are required for recording trait data but are not yet available or applied in freshwater fish (12). Besides, the capture of phenotypic information in natural language in a way that is amenable to computational analysis has been a major challenge of the past two decades (19). Therefore, till today, data are still entered by dedicated encoders (24). Encoding does not only imply manual typing of data; rather, it is that aspect of doing science that involves searching the literature for pertinent information, breaking this information down to units of data and finally encoding these into an interface incorporating rules and error traps, as does the FishBase encoding interface (24). In contrast to FishBase (1) or Fishtraits (11), all information in STOREFISH was entered by one person (F.T.), and no data entries were verified by a second person. Therefore, we will continue to use feedback from peer reviewers and users of the database, as well as our continuing review of literature, to update and correct it, as performed for FishTraits (11) and FishBase. As any database, a user should always check the date of last update, gain a basic understanding of the data flows and be aware of the risk of error propagation (16). Despite the multitude of possible pitfalls and limitations in the usage of data from different sources, the benefits of having them publicly available clearly outweigh the potential issues (16). Public availability of data exposes them to possible scrutiny by peers, opens the potential to reuse including integration in large-scale analyses, represents an increased resource efficiency (not requiring new investments in data generation for well-covered areas) and results in a better understanding of gaps in the data (16). To make sure that our database will remain accessible, which is a major issue due to the lack of resources to manage and preserve data for the long term [see Costello et al. (47)], we plan to make STOREFISH a fully machine-readable linked open data (16) and adhere to the FAIR principles, namely making data findable, accessible, interoperable and reusable, to be able to join the Open Traits Network (41).

Conclusion

Nearly 15 years after the onset of the STOREFISH project, the database is ultimately online. Even though technologies have improved during this time, human curation remains essential at each step of the process, particularly for searching and encoding primary data (23, 24). Yet, the transformation of primary data into secondary data can be quite efficiently performed automatically if primary data are correctly entered within the database. Now that we know better how to enter the primary data to automatically extract the information, we anticipated to release an enlarged database next year, focusing on the early life stages of American freshwater fish species (48). In the future, our main goal is to combine the data gathered within STOREFISH 2.0 and similar databases with concept and methods of systematics (33, 34), to better understand the evolution of life history across the tree of life of fishes as well as help answering more applied questions, such as the onset of cannibalism or the link between larval size and feeding protocols (33, 34). We also anticipate that this new database could be useful for freshwater biodiversity research, conservation, assessment and management.

Acknowledgements

We thank Pierrick Chabot for the prototyping of the database during his master internship under the supervision of S. Téletchéa. We also thank the two anonymous reviewers for their comments.

Funding

No specific fundings were used to develop STOREFISH 2.0. FT acknowledges support from the Thomas Jefferson Fund “Make Our Planet Great Again Initiative” https://face-foundation.org/higher-education/thomas-jefferson-fund/. The funders had no role in data collection and analysis, decision to publish, or preparation of the manuscript.
