Growing and cultivating the forest genomics database, TreeGenes

Abstract

Forest trees are valued sources of pulp, timber and biofuels, and serve a role in carbon sequestration, biodiversity maintenance and watershed stability. Examining the relationships among genetic, phenotypic and environmental factors for these species provides insight on the areas of concern for breeders and researchers alike. The TreeGenes database is a web-based repository that is home to 1790 tree species and over 1500 registered users. The database provides a curated archive for high-throughput genomics, including reference genomes, transcriptomes, genetic maps and variant data. These resources are paired with extensive phenotypic information and environmental layers. TreeGenes recently migrated to Tripal, an integrated and open-source database schema and content management system. This migration enabled developments focused on data exchange, data transfer and improved analytical capacity, as well as providing TreeGenes the opportunity to communicate with the following partner databases: Hardwood Genomics Web, Genome Database for Rosaceae, and the Citrus Genome Database. Recent development in TreeGenes has focused on coordinating information for georeferenced accessions, including metadata acquisition and ontological frameworks, to improve integration across studies combining genetic, phenotypic and environmental data. This focus was paired with the development of tools to enable comparative genomics and data visualization. By combining advanced data importers, relevant metadata standards and integrated analytical frameworks, TreeGenes provides a platform for researchers to store, submit and analyze forest tree data.

Introduction

The availability of high-throughput sequencing has enabled the assembly of over 4500 eukaryote genomes in the past 10 years (8). Despite this tremendous progress, fewer than 300 are land plant genomes and only 26 represent forest tree species (29). The vast majority of genomics data are generated in the form of transcriptomes, targeted sequencing such as exome capture, or genotyping-by-sequencing (GBS). In addition to limitations of reference material, traditional repositories for genomics data, including plant genomics, provide limited access, curation and integration for non-model organisms. Repositories focused on the plant kingdom, such as the Joint Genome Institute’s (JGI) Phytozome (9), serve as the gold standard for reference plant genomes but do not integrate beyond the genome sequence and the associated annotation. A related challenge surrounding high-throughput technologies is the cost required to store this information. The cost to keep a single base pair on local hardware or in the ‘cloud’ has now exceeded the expense associated with sequence generation (26). Primary repositories must decide what types of data are most critical for their user base and how to provide this in a value-added context. For example, NCBI’s Genbank is no longer accepting variant data that is not associated with biomedical models (8). For plants, and other organisms, it is the role of the clade and model organism databases to fill these voids for data collection and provide a platform by which these data can be integrated and queried in a manner that is consistent with the objectives of the research community.

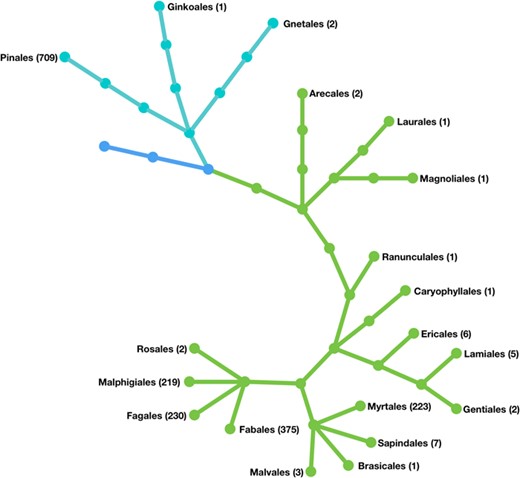

TreeGenes is a clade organism database for forest trees, representing 16 orders and over 1790 species (Figure 1). This repository stores and curates genetic information and the related phenotypic and environmental metrics to provide value to various end users. The data consumers of TreeGenes represent academic research labs, commercial breeders, government agencies and a variety of foundations. Although their objectives vary, they share a common interest in integrating data across scales to develop approaches for assisted migration (1), reforestation (24), marker-assisted breeding (21) and pathogen management (23) at the population level. Population scale studies are aimed at improving and understanding forest tree populations through comparative genomics, ecological genomics and quantitative genetics (25). While genomics technologies are enabling these endeavors, the resources available for specific species vary as widely as the organizations focused on them (22).

Since its inception in the 1990s as a framework to store genetic maps, the TreeGenes database has grown to hold nearly every genetic and genomic data type available (27, 28). Recent collaborations with large-scale research projects have mandated that phenotypic data be stored in a relational manner alongside these genomics datasets. Moreover, it has become apparent that environmental data are also needed to answer questions relevant to threatened forests and breeding populations. The diverse research interests of the community, numerous species studied and wide-ranging technologies require extensive metadata in order to integrate and analyze the heterogeneous data downstream. Beyond data integration, the necessity to store novel data types and implement new standards as the field rapidly changes requires a flexible, modular and standardized framework. Towards this end, TreeGenes has become a part of the federation of Tripal databases and has developed modules focused on cross-site querying, data transfer and direct access to analytical tools that serve the unique forest tree community.

Software architecture of TreeGenes

TreeGenes’ underlying Tripal framework

TreeGenes is an early adopter of the Tripal v3 framework to organize and integrate data, develop new applications and coordinate data exchange. This open source toolkit facilitates the construction of high quality, standards-based, genetic databases. The Tripal platform, first released in 2008, currently supports over 120 sites for a wide range of species (2). Tripal unifies the Generic Model Organism Database schema known as Chado (3) with the content management system, Drupal (https://www.drupal.org/). The core Tripal installation provides a series of templates to store and query common sequence types such as genes, proteins and genome sequences, as well as publications. This union of web and database tools provides a framework that can be easily deployed and expanded. Tripal encourages database managers to develop and share extension modules that can provide additional features for new data types or more efficient data access. Recent development of Tripal v3 involved a collaboration among TreeGenes, Hardwood Genomics Project (6), Genome Database for Rosaceae (4), Citrus Genome Database (https://www.citrusgenomedb.org) and the Legume Federation (https://legumefederation.org) to enable cross-database communication and connection to analytical pipelines through three core modules, Tripal Exchange, Tripal Galaxy and Tripal Transfer, branded as Tripal Gateway.

In cases where the database schema diverges from standard nomenclature or holds new data types, Tripal Ex-change (http://tripal.info/tutorials/v3.x/web-services) provides greater flexibility for local architectures through web services. This feature permits each Tripal database to define their terms, and therefore provides a mechanism to search the same data types across Tripal databases, regardless of how they are stored. An extension on this framework developed by Hardwood Genomics Web includes Tripal ElasticSearch (7). This module allows Tripal sites to index the content they would like to share and provides an interface for cross-site query.

In addition to providing a mechanism for data access across sites, accessible analytical frameworks are required to process large datasets. Tripal Galaxy (https://www.drupal.org/project/tripal_galaxy) provides an API to communicate with any Galaxy server. This web-based platform provides transparent and reproducible research through open source bioinformatic applications and connected workflows (5). Galaxy was first developed to enable access to packages commonly implemented in genomics research and has gained utility across a number of disciplines. The Tripal Galaxy API enables administrators to develop workflows custom to their data and provides guided parameterization as well as management of the required high performance computing resources available locally or remotely. The API does this through the use of the blend4php (https://github.com/galaxyproject/blend4php) library, a wrapper for the Galaxy API written specifically for PHP-based applications such as Drupal.

While Tripal Exchange provides a mechanism for cross-site query and Tripal Galaxy provides an API to an established analytical platform, there remains a need to bring datasets that are several gigabytes to several terabytes in size across the network. This transfer remains one of the more significant bottlenecks for big data manipulation. Tripal Transfer (https://github.com/feltus/BDSS) focuses on optimizing the transfer of large datasets from primary data sources, such as GenBank, as well as other Tripal sites through identification of the optimal path and reliance on hubs with direct connections to Internet2. Efficient data transfer allows the products of cross-site queries to localize at the appropriate Galaxy instance for analysis.

Back-end Database and the web interface of TreeGenes

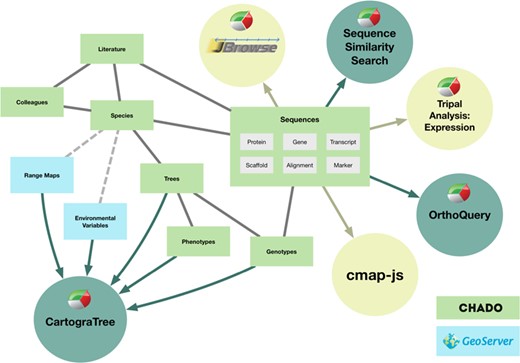

TreeGenes stores data within the Chado schema, organized around three primary content types: colleague, publication and species (18) (Figure 2). The colleague module represents 1093 researchers across 873 institutions worldwide. These colleagues have profiles that define their species of interest, publications, as well as contact details. Currently, a total of 24 847 publications are housed in TreeGenes that are sourced bi-weekly from Web of Science (https://clarivate.com/products/web-of-science/) and manually imported from Dryad (https://datadryad.org/). Colleague information can be linked to these publications and the recent integration of ORCID (https://orcid.org) credentials assists with this authentication. Species records are associated with both colleagues and literature. NCBI’s Taxonomy database serves as the basis for locating information associated with the 1791 species in TreeGenes (8). Addition of a new species into TreeGenes is based upon availability of at least one piece of genetic data from the taxonomic orders of interest. Associated genetic, phenotypic and environmental data are imported from user submissions, as well as primary and secondary data banks based upon the most recent update of literature and species records.

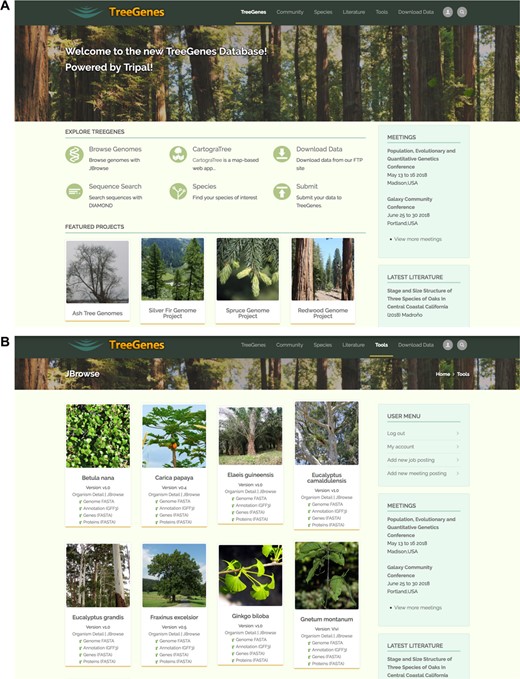

The TreeGenes repository is accessible through any browser pointed at treegenesdb.org. Individual pages are designed and maintained through Drupal, which facilitates web forms, summary pages and administrative pages. The homepage provides access to research community relevant lists, current large-scale research collaborations, as well as access to pages serving the related search forms and tools (Figure 3A and B). Data content can be directly queried through the search interfaces via Drupal forms or the ElasticSearch Tripal module which is presented as a search bar on pages representing indexed data types. Both approaches access the TreeGenes data organized in Chado and optimized for query via materialized views. In addition to web-based queries, flat files of sequence sets, including full genomes and indexes for short read aligners acting on these reference genomes, are available on TreeGene’s FTP. Several Tripal extension modules are installed on the website to provide visualization and analytical features.

Open source software architecture of TreeGenes

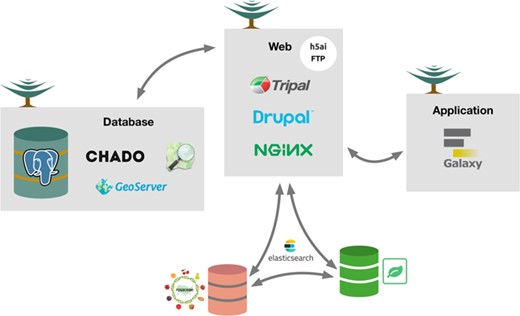

TreeGenes is distributed across independent and replicated web, database and application servers to promote a development to production model (Figure 4). All hardware is running CentOS 7 Linux. The web servers host: Tripal v3, Drupal v7, NGINX v1.10.2, PHP v7.0.25, CMAP (https://github.com/LegumeFederation/cmap-js), H5AI (https://larsjung.de/h5ai/) and JBrowse (16). The database servers host PostgreSQL v9.5 with the Chado schema and GeoServer v2.11.2. The application server hosts a Galaxy instance v17.09, as well as independent applications responsible for batch processing of large genomic datasets.

Data sources for TreeGenes

Genetics and genomics

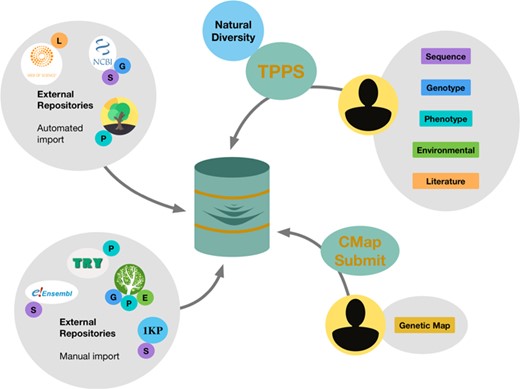

NCBI’s GenBank serves as the primary repository for raw sequence data (SRA), reference genomes (WGS and Genome), assembled transcriptomes (TSA), expressed sequence tags (ESTs), complementary DNA (cDNA) and expression studies (GEO). TreeGenes currently hosts 2142 BioProjects, 19 genomes, 2 303 178 TSA records, 588 695 EST records, 188 982 cDNA records, 15 109 808 dbSNP records and 466 GEO studies from GenBank. Aside from GenBank, reference genomes may also be curated from JGI’s Phytozome (9) or Ensembl (10). An additional 14 genomes hosted by TreeGenes are sourced from Phytozome or Ensembl.

While many forest tree species lack reference genome assemblies, approximately 186 species are represented by studies focused on the coding regions of the genome. Community projects, such as 1000 Plants (1KP), provide an important source of information for 87 of the TreeGenes hosted species. From this project and the combined GenBank resources (EST, cDNA, TSA), TreeGenes curates a non-redundant set of UniGenes for 40 species that serve as a comprehensive resource for species specific gene sets.

TreeGenes hosts genotypic data, in the form of SSRs and SNPs for 69 species. This information was previously imported from NCBI’s dbSNP but is currently the product of direct submissions to the database. Population level studies in the form of genotyping assays, exome capture and GBS are the primary sources of variant data.

Phenotypes and phenomics

Phenotypic terms and their associated measures are primarily collected and curated from direct submissions by authors to TreeGenes. Phenotypes are accepted for trees that have exact as well as approximate georeferenced locations. Additional phenotypic metrics are collected from three independent sources: TRY-DB, Dryad and TreeSnap (https://treesnap.org/). The international web-based repository TRY-DB stores plant trait terms available from over 400 researcher-contributed databases (11). The TreeGenes database has imported 6049 unique terms from 693 tree species from TRY-DB to date. As a consumer and an accession provider of data associated with peer reviewed journals, Dryad has become an important source of phenotypic (as well as associated genotypic) data in TreeGenes representing a total of 33 studies. Dryad is widely adopted by ecology and evolutionary biology journals and a subset of submissions can be curated for phenotypic metrics for georeferenced tree species. The variable file format options in Dryad require a manual curation process before data can be imported to the database. In addition to curated phenotypic data, the citizen science and land manager focused mobile application, TreeSnap, provides a venue for identifying and reporting phenotypic measures for specific forest tree species. TreeGenes routinely imports validated and georeferenced forest trees accessions from TreeSnap, and has collected data on 255 trees (68 species) to date.

Environmental data

TreeGenes stores georeferenced environmental data, which is crucial for interrogating genotypic data in diverse forest tree populations (Table 1). TreeGenes curates and hosts global environmental data from public repositories and local data uploaded by authors prior to publication. These data can be accessed from the custom extension module, CartograTree (12).

Community submissions and standards

In this past 5 years alone, over 670 studies have been published on association genetics and/or landscape genomics of forest trees. Very little of this data is formally collected as georeferenced accessions with full integration of genotype and phenotype. TreeGenes has developed the Tripal Plant Pop-Gen Submit pipeline (TPPS) to specifically capture data and metadata describing genotype, phenotype and environmental studies associated with landscape genomics or association genetics investigations (Figure 5). The workflow relies on a series of questions to properly describe the experimental design, including location, replication and treatments. These questions also guide the system on the types of raw and intermediate data to request. Raw sequence data and reference genomes are sent to the primary repositories and linked back to TreeGenes via NCBI/EBI accession numbers. Intermediate deliverables, such as assemblies and genotypes, are accepted within the TPPS workflow. TPPS is able to accommodate a wide range of designs common to forest genetics studies: landscape sampling, breeding plots, common gardens and growth chamber experiments.

TPPS enforces minimal reporting standards and associated biological ontologies to provide reusable data. The module employs standards established as the Minimal Information About a Plant Phenotyping Experiment (MIAPPE) to guide the collection of phenotypic data as well as the overall experimental design (17). The MIAPPE standards were developed from the objectives of transPLANT, European Plant Phenotyping Network and ELIXIR-EXCELERATE projects with the goal of developing reporting requirements to describe plant phenotyping experiments. MIAPPE integrates its minimal reporting standards with existing ontological frameworks. TreeGenes has implemented five of these: Plant Ontology (PO) (14), Chemical Entities of Biological Interest (ChEBI) (33), Trait Ontology (TO) (34), Crop Ontology (CO) (13), Phenotype And Trait Ontology (PATO) (https://github.com/pato-ontology/pato) and a custom TreeGenes ontology that serves to hold traits in transition to established ontologies (Table 2). Plant structure, development and trait terms are integrated with PATO and supporting ontologies via the Planteome project which enables comparative biology across the omics. In addition to the traits and their associated plant structures, genotypic values are collected through TPPS. Currently, TPPS can accommodate both SNPs and microsatellites (SSRs). This marker data is collected in the context of the sequencing design, which may include genotyping assays, genotype-by-sequencing (GBS) approaches, transcriptomic sequencing and whole genome resequencing. Community standards, such as the Variant Common Format, are preferred. However, alternatives consistent with minimal reporting are accepted and will be converted and stored for re-distribution in standard file formats. For all submissions with genotypic values, TPPS requires the user to reference a genome and version, or provide an intermediate assembly (transcriptomic or genomic) from which the SNP calls were derived. In a final, optional step, environmental data for the georeferenced trees can be loaded directly from the layers used or as independent measurements conducted by the investigators.

Following acceptance and validation of the data in the TPPS module, an accession number is supplied that provides a long-term reference to the entire dataset. TreeGenes works closely with journals focused on tree genetics to encourage researchers to submit these data at the time of publication. To date, TreeGenes has collected a total of 71 studies representing 56 species. The combination of TPPS submissions as well as imported information from TRY-DB, Dryad and TreeSNAP represents 36 730 176 genotypes and 935 596 phenotype records. Accepted studies are available in TreeGenes under the ‘Tripal Plant Pop-Gen Submissions’ page, where users can download the associated flat files, organized by content type.

Tools for query, submission, curation, analysis and visualization

One of the main features of Tripal is its modular design, which allows developers to easily create and publish custom modules for others to use and install extensions developed by other members in the community. TreeGenes takes advantage of this feature and provides its users a number of Tripal extension modules developed by either the community or in-house, which enables the researchers to stay entirely within the site executing an analysis. Custom modules allow users to submit, query, analyze and visualize data all within TreeGenes.

To query and analyze data in TreeGenes, users have several options, enabled by the ElasticSearch module, Tripal Sequence Similarity Search (TSeq) module and the upcoming OrthoQuery module. With ElasticSearch, users can perform text searches in TreeGenes, similar to a standard web browser. Any table exposed by TreeGenes can be searched using this module. For example, searching for ‘drought’ returns 179 publications that contain this term in their title, abstract or keywords. The results are shown over several pages, with part of the abstract of each publication listed, the term highlighted in bold font and a link to the publication page in TreeGenes. Moreover, ElasticSearch enables fast and scalable searching across the Tripal sites it is installed on. Currently, ElasticSearch is connected to the Hardwood Genomics Project database, allowing users to query available gene indexes, species, phenotypes, sequence records and more. Once additional Tripal databases are connected, such as the Genome Database for Rosaceae and Citrus Genome Database, users and researchers will be able to pull in an expansive set of data and search through multiple sites and databases at once (4).

Sequence search functionality is provided by TSeq in TreeGenes. TSeq provides access to the speed increase available through Diamond (35) for BLASTP/BLASTX style searches as well as traditional NCBI BLAST (36) for BLASTN. Both applications are integrated into a single interface that provides file upload or copy/paste sequence support for the query and access to formatted databases for NCBI BLAST or Diamond. The target databases can be customized for the categories of whole genome, gene, protein and transcriptome/UniGene. TSeq leverages Tripal Remote Job, another Tripal Extension module from the community, to run jobs on external machines with high computational capacity. The output is in the familiar BLAST XML format and can be viewed in a table or downloaded for the user’s convenience.

OrthoQuery is being developed for comprehensive comparative genomic analysis using orthogroups. Comparisons across orthogroups can help characterize selection pressure, evolutionary rate of specific gene families, novel gene families and identify whole or partial genome duplication events even in the absence of reference genome. Tools like OrthoFinder (20) can execute such comparisons and investigate relationships among sets of protein sequences. These tools are however limited, as they do not allow users to select and filter datasets, or provide a robust visualization and query interface. OrthoQuery is a Tripal module that provides a semi-automated analytical pipeline and visualization platform. It identifies orthologous genes from user-selected UniGenes represented in the database, executes OrthoFinder optimized with Diamond and utilizes the Tripal framework with Galaxy integration to support execution of multiple workflows. Visualization features are enabled by building a customized D3 script (https://d3js.org/) that allows the user to interactively interrogate specific gene families based on phylogenetic relationships and query the specified orthogroups.

Visualization of genomic data residing in TreeGenes is supported by two community-developed modules, JBrowse and Natural Diversity Genotypes (https://www.drupal.org/project/nd_genotypes). With JBrowse, users can visualize, consult and analyze multiple genomes that are held in the TreeGenes database (Figure 3B). JBrowse is an online genome browser built in HTML5 and JavaScript that provides a low latency tool for the visualization of genomes and genome annotation. The Natural Diversity Genotypes module adds a specialized interface for displaying information from the central tables in a Chado database schema. A search view, genotype view and sequence view create a more usable experience for users looking to summarize this information. This module also provides genotype search functionality such that users can select individuals and variants of interest, followed by the option of downloading the desired dataset as a tab-delimited file.

CartograTree is a visualization and analysis module for meta-analysis of genotype, phenotype and environmental data of georeferenced tree accessions derived from association genetics and landscape genomics studies. It is challenging for researchers to identify and combine the resources necessary for meta-analysis of landscape genomics and association mapping studies. Hurdles include different projections of global information system (GIS) data, improper formatting of source files or incomplete genotype and phenotype metrics. CartograTree leverages the TreeGenes database to present genetic and phenotypic data in a simple, visual interface for researchers, and create visualizations based on results. Trees can be queried by species or study affiliation directly through the tool or loaded into CartograTree via links provided from species detail pages and the TPPS landing page. TPPS submitted studies provide direct access to the genotypic and phenotypic values. CartograTree also provides an interface for properly formatted environmental data, allowing researchers to focus on designing the workflows to integrate biotic and abiotic data. These analyses can be supported within CartograTree since it integrates with the Galaxy platform that is home to a variety of bioinformatic tools and workflows.

Conclusions and future directions

The TreeGenes database has served the forest genetics community since the early 1990s. It was implemented first as Dendrome, a repository to hold information related to genetic linkage maps and the researchers who generated them. Over the years, the database embraced a relational model to store data and expanded to include data submitted not only by its own users, but also information curated by numerous primary and secondary sources. Recent development has focused on providing an integrated platform that contains genetic information, as well as the associated phenotype and environmental information. In the era of high-throughput sequencing, TreeGenes adopted more efficient models for data storage and developed custom interfaces that were focused on retrieving larger datasets or executing sequence similarity searches for numerous sequences. The recent transition to the Tripal framework was fueled by the desire to develop in a more flexible and sustainable platform. Tripal provides a framework that can adapt to new data types on the back end and provide an interface that can be quickly customized on the front end. Migration to Tripal also provided membership to a community of over 100 databases, many of which are supporting plant-focused research. The Tripal Gateway framework, available in version 3, has provided functionality to support cross-site query, efficient data transfer and access to analytical pipelines, such as Galaxy. The TreeGenes database is unique in its wide species representation and minimal reference sequence resources. For its community, TreeGenes has pursued comparative genomics and population genomics through the development of Tripal extension modules, such as TPPS, TSeq, OrthoQuery and CartograTree.

Future development in TreeGenes is focused on advanced metadata integration, analytical pipelines that can work with user provided data and further integration with partner databases to achieve improved visualization for comparative genomics. The field of genomics will continue to evolve with sequencing technologies that can generate more reference material and assess even larger populations. The field of phenomics, especially for forest biology, is moving toward remote sensing technologies to provide high-throughput phenotypic for forest health and production. If developers combine these in an integrated environment with appropriate metadata and analytical capacity, the research impact will be tremendous.

Acknowledgements

We would like to thank the Computational Biology Core within the Institute of Systems Genomics at the University of Connecticut and The High Performance Computing Facility at the UConn Health Center for hardware support. We would also like to thank the developers from the Legume Federation for supporting early comparative map code, as well as Lacey-Anne Sanderson from the University of Saskatchewan for her support with implementing the Natural Diversity extensions in Tripal.

Funding

National Science Foundation (ACI-1443040, ACI-1444573) and United States Department of Agriculture (2016–67013-24469).

Conflict of interest. None declared.

Database URL: https://treegenesdb.org/Drupal
